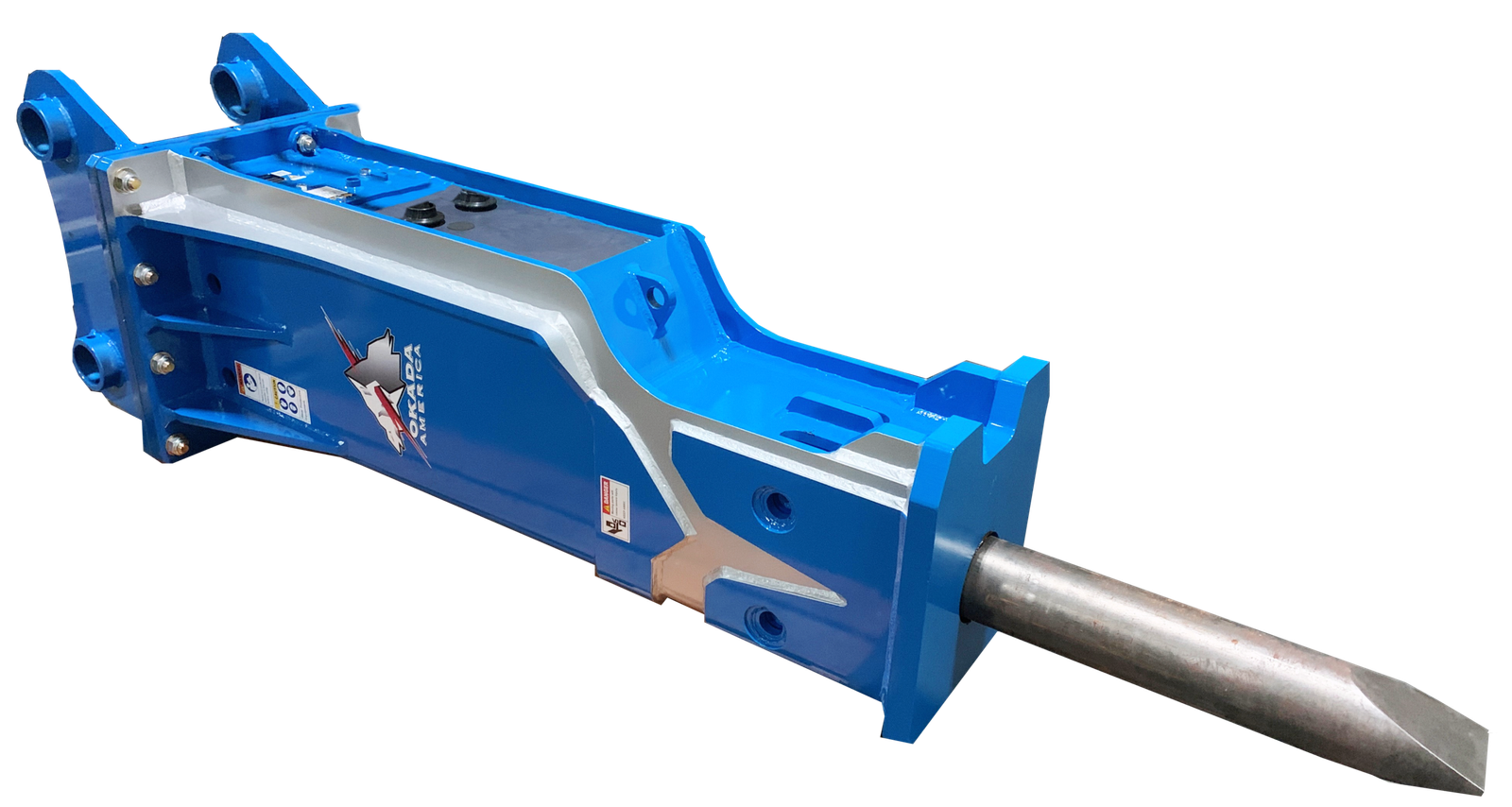

Okada ORV Series Hydraulic Breakers
Main Specs
| Brand | Okada |
| Make | ORV Series |
| Model | 250LT, 250H, 405H, 550H, 800SH, 1100H, 1500H, 2500H, 3000H, 4000H, 5000H, 7500H, 10000H, 12000H |
Highlights
- 14 Models
- 150 to 12,500 ft.-lbs.
- H Series Breakers are in Box Housing Design
- Suitable for the skid steers, compact excavators, track loaders, backhoe-loaders and excavators.
Additional Information

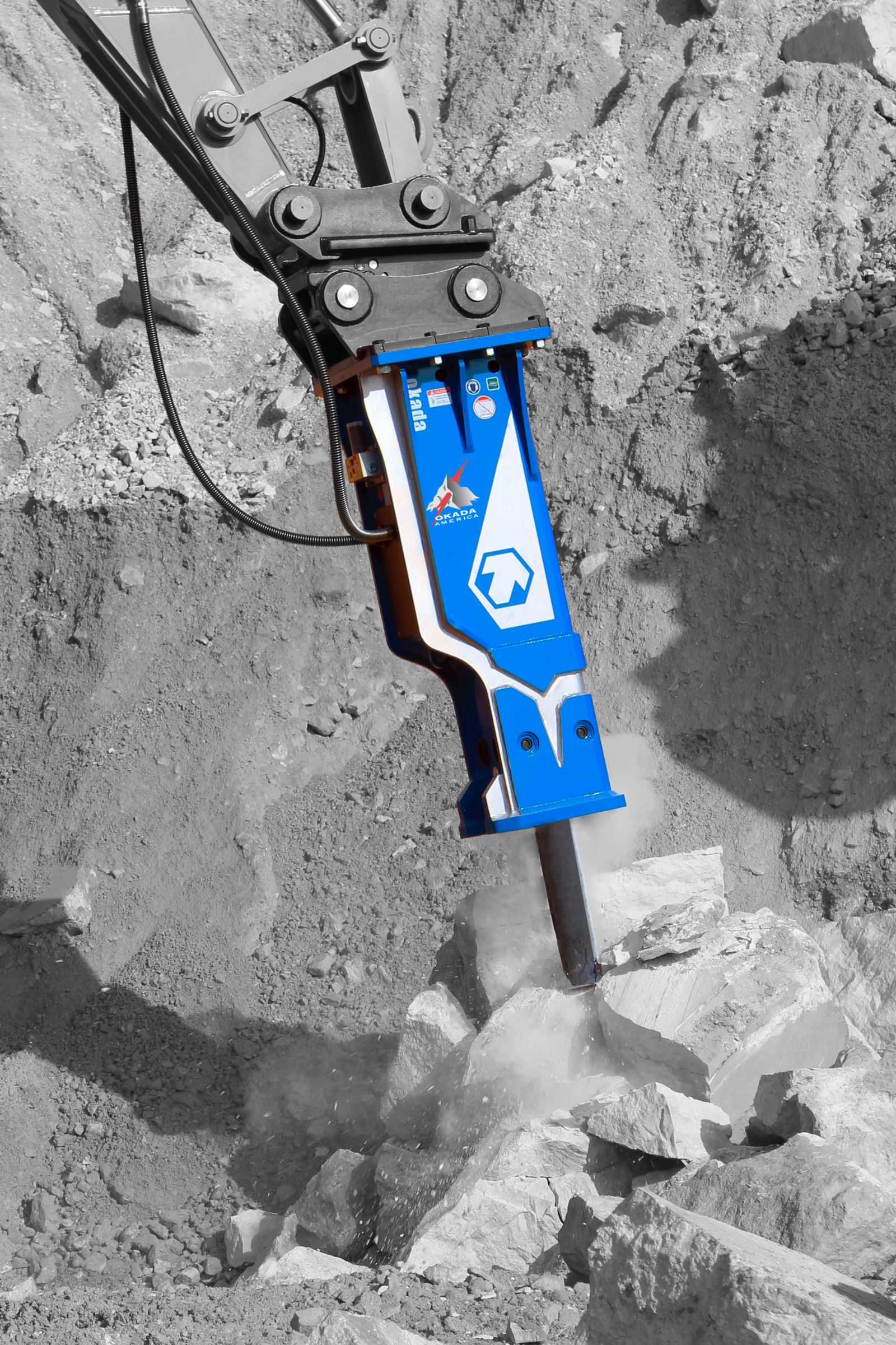

ORV Series hydraulic breakers are the result of decades of field experience and Okada’s long-standing record of leadership in the industry. Thirteen models of ORV hydraulic breakers provide a broad range of solutions for your skid steer loaders, compact excavators, tractor loader backhoes and excavator.
Breakers are in box housings except ORV250LT
Small Class, Mid-Class and Large Class Available:
150-1500 FT-LBS CLASS
2500-7500 FT-LBS CLASS
10000-12500 FT-LBS CLASS
| ORV HYDRAULIC HAMMERS | |||||||||
| ORV Series | |||||||||
| Impact Energy Class (Ft-Lb) |
Model | Weight* (lbs) |
Tool Dia (in) |
Frequency (bpm) |
Oil Flow** (gpm) |
Operating Pressure (psi) |
Carrier Range (lbs) |
||
| 225 | ORV250H | 321 | 1.77 | 550-1000 | 1280-1706 | 2,200-5,000 | |||

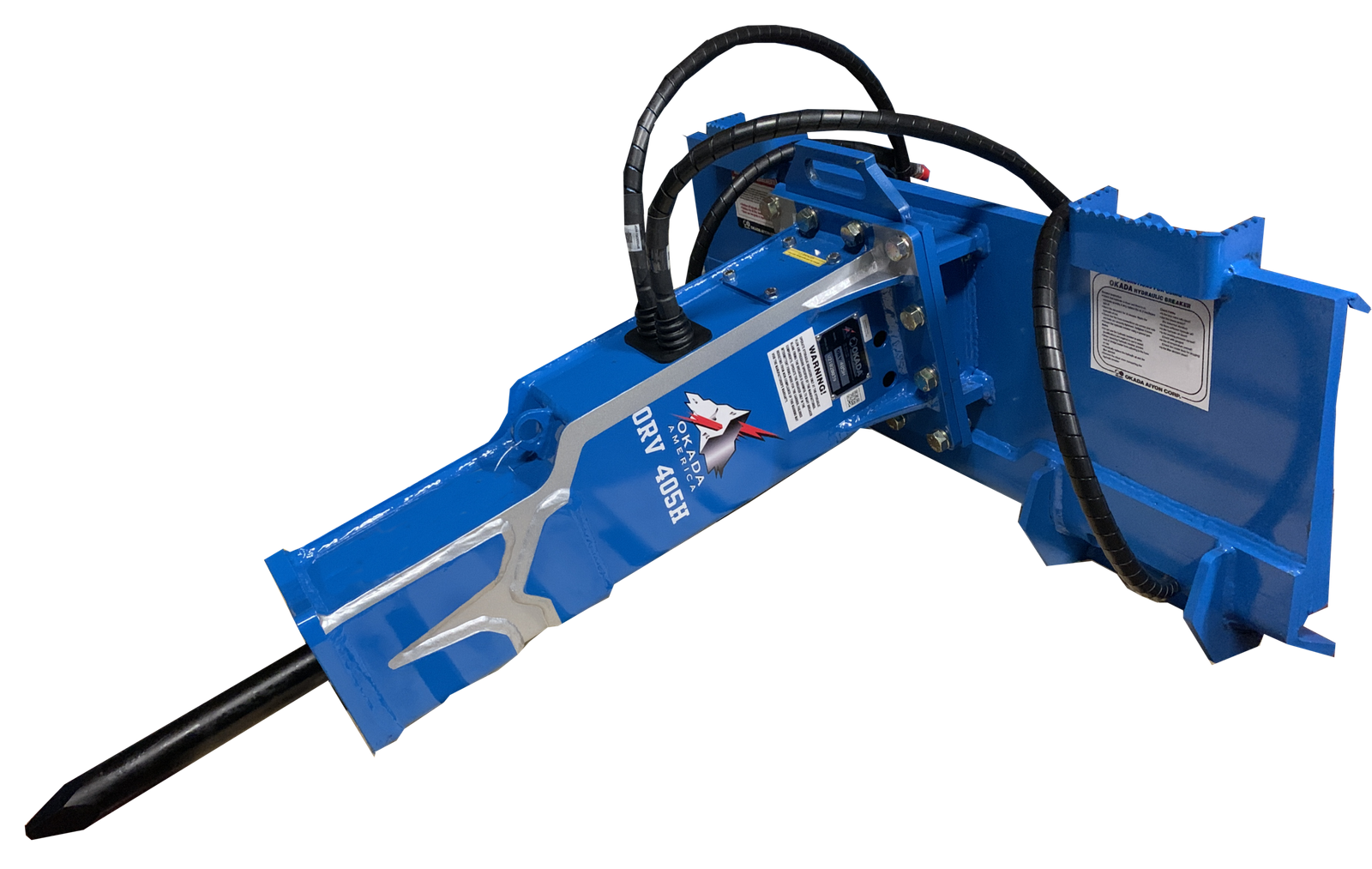

| 375 | ORV405H | 413 | 2.24 | 600-1500 | 1280-1706 | 3,300-8,800 | |||

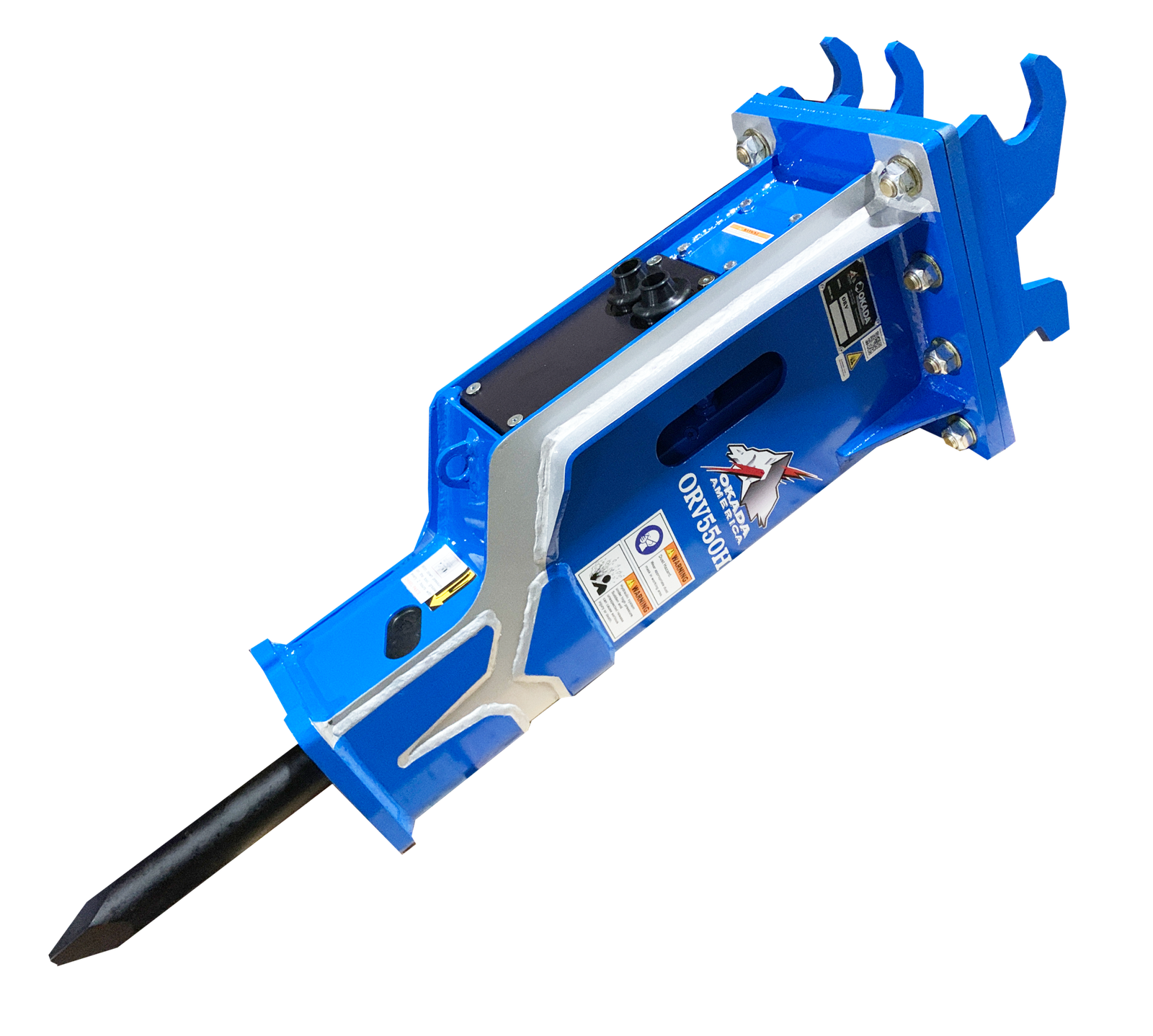

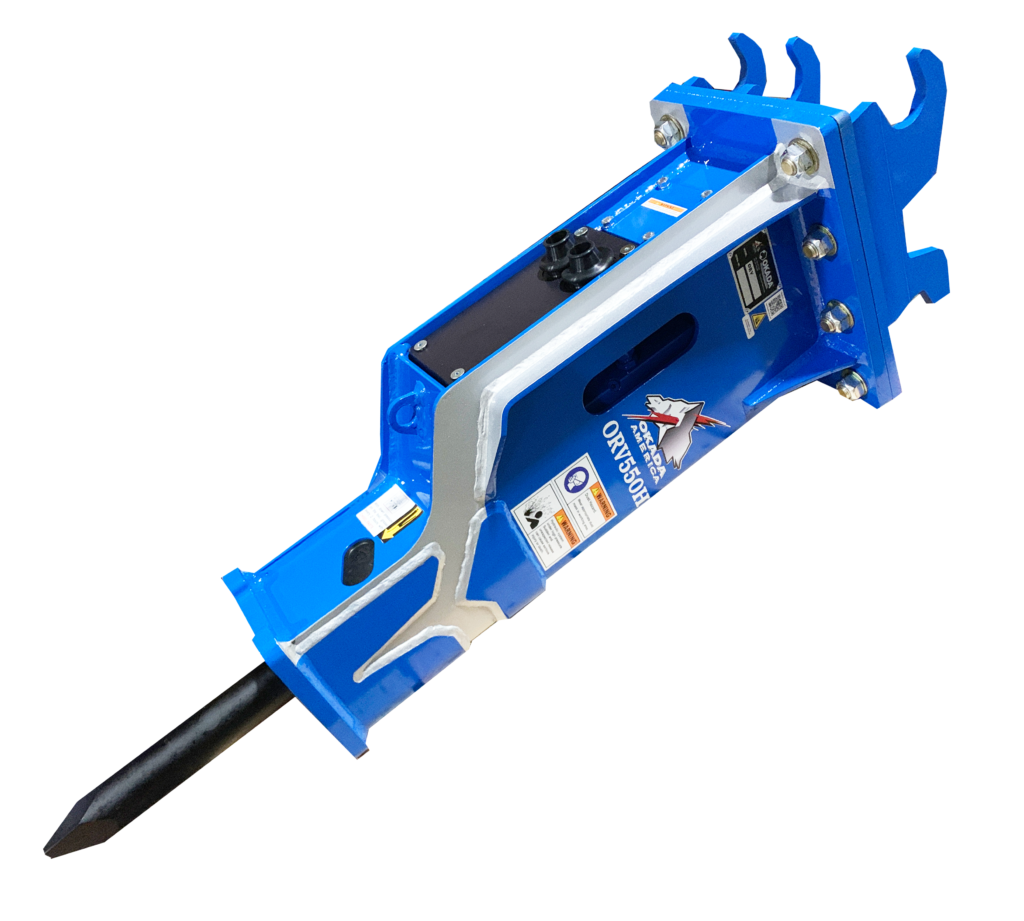

| 550 | ORV550H | 572 | 2.76 | 380-1000 | 1564-2347 | 6,600-14,200 | |||

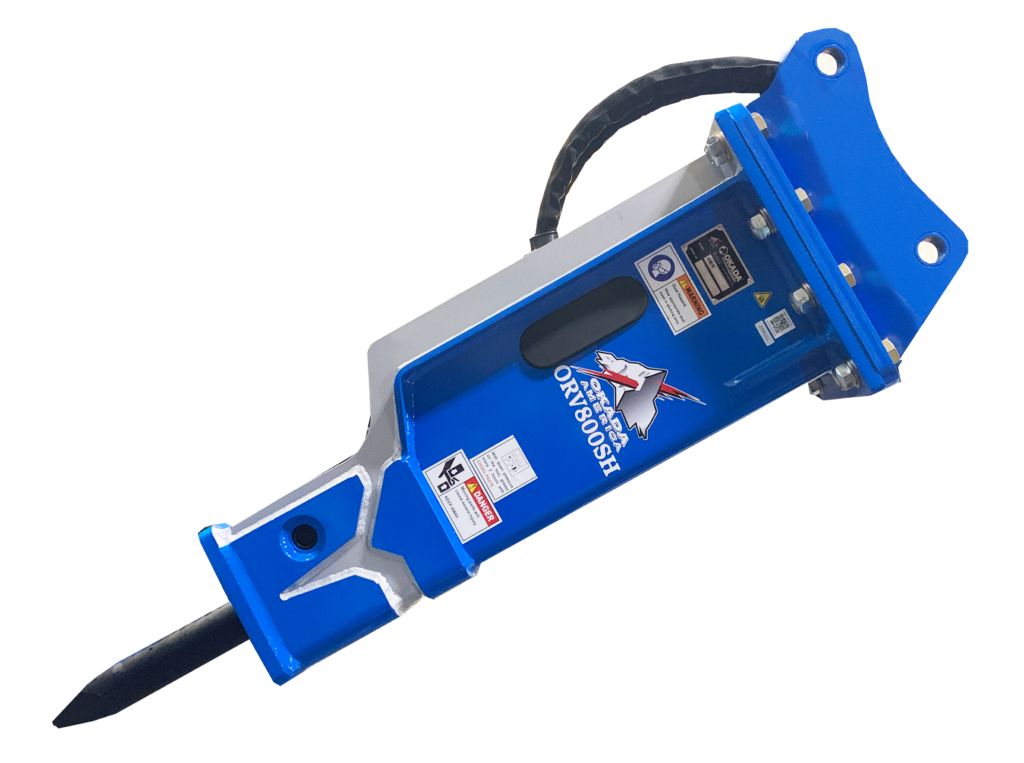

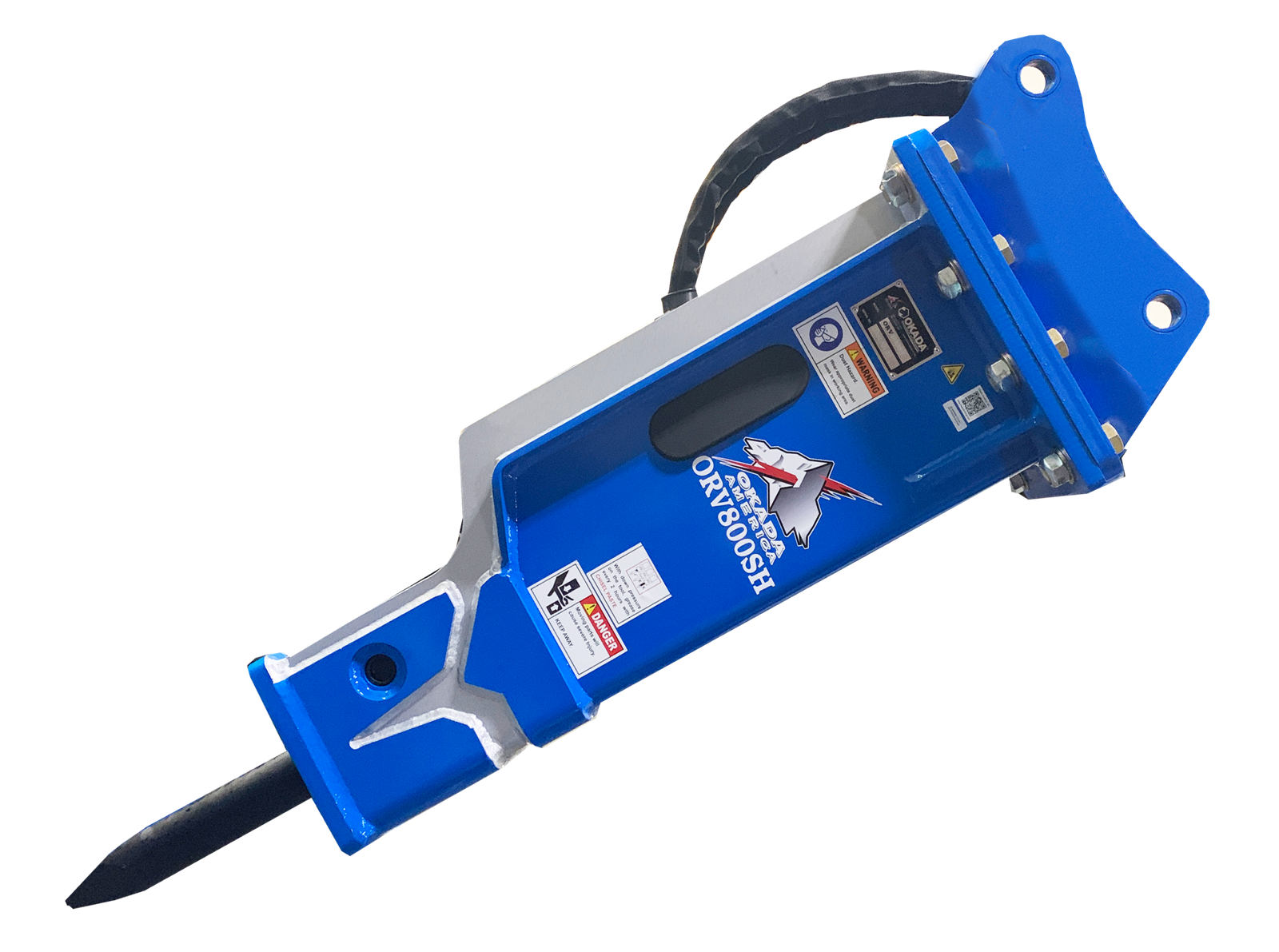

| 850 | ORV800SH | 780 | 2.95 | 380-900 | 14-20 | 1706-2347 | 10,000-18,000 | ||

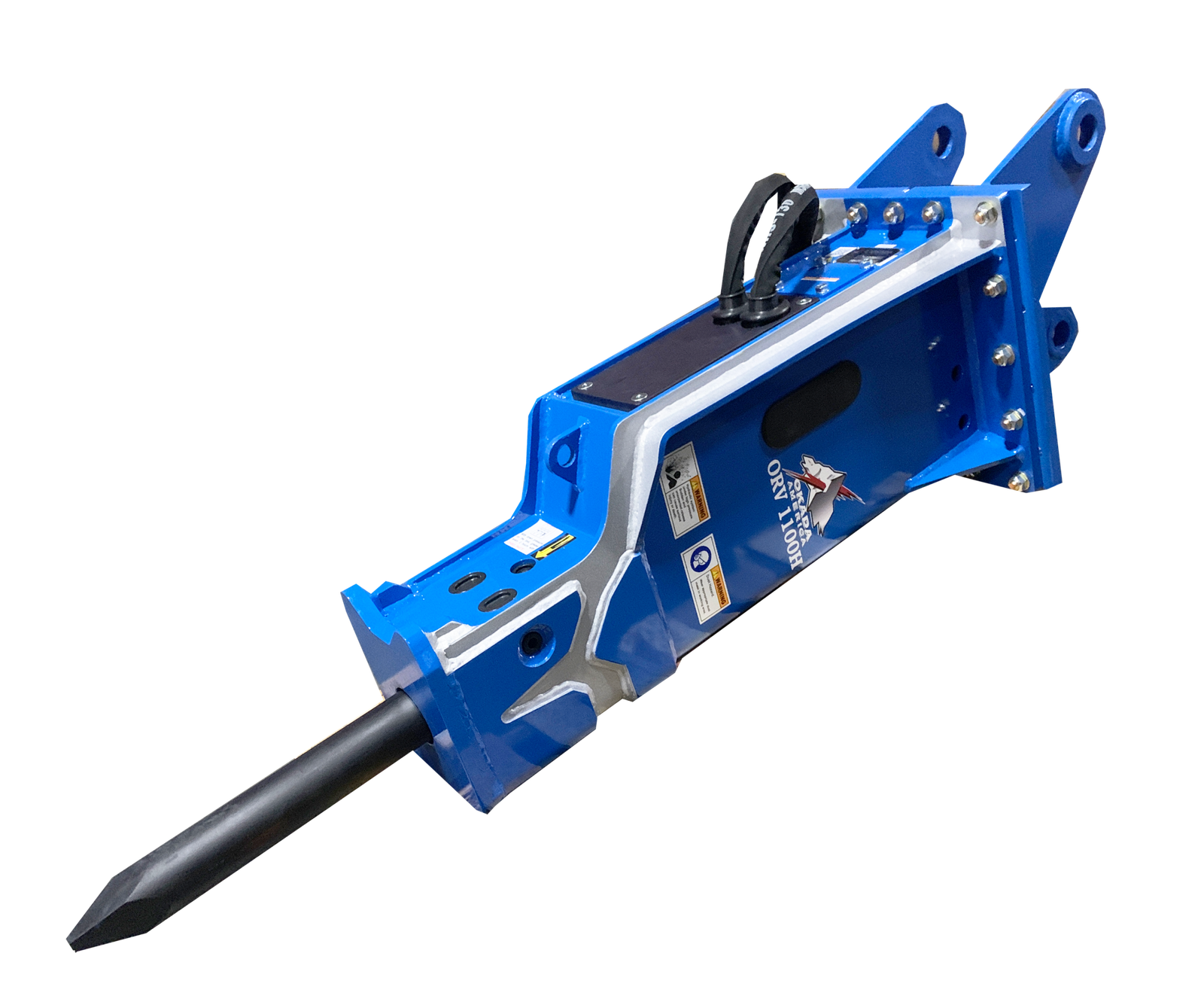

| 1,100 | ORV1100H | 1118 | 3.15 | 400-800 / 600-1100 | 15-23 | 1990-2418 | 10,000-18,000 | ||

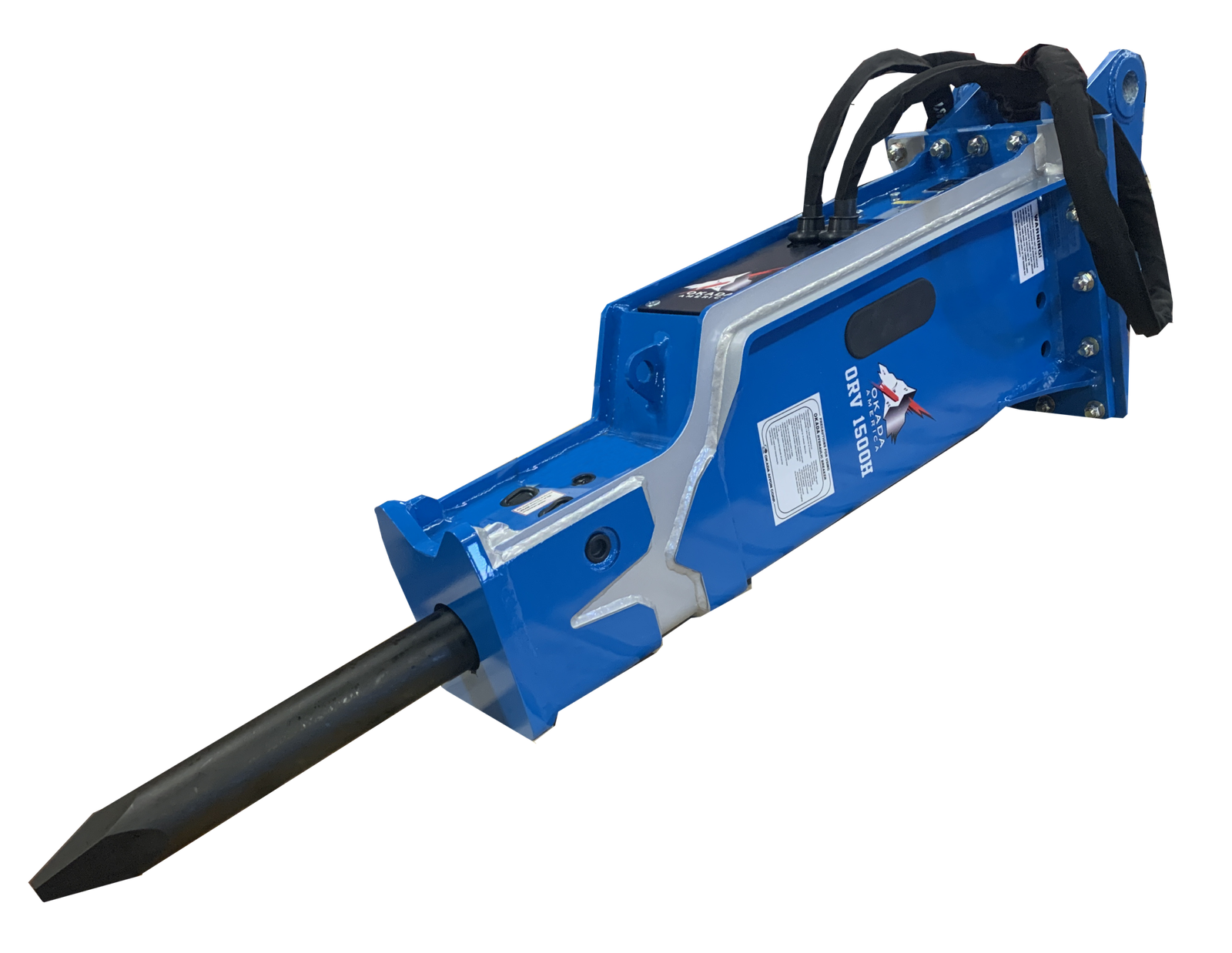

| 1,500 | ORV1500HX | 1667 | 3.54 | 350-700 / 490-1000 | 16-26 | 1990-2418 | 13,000-22,000 | ||

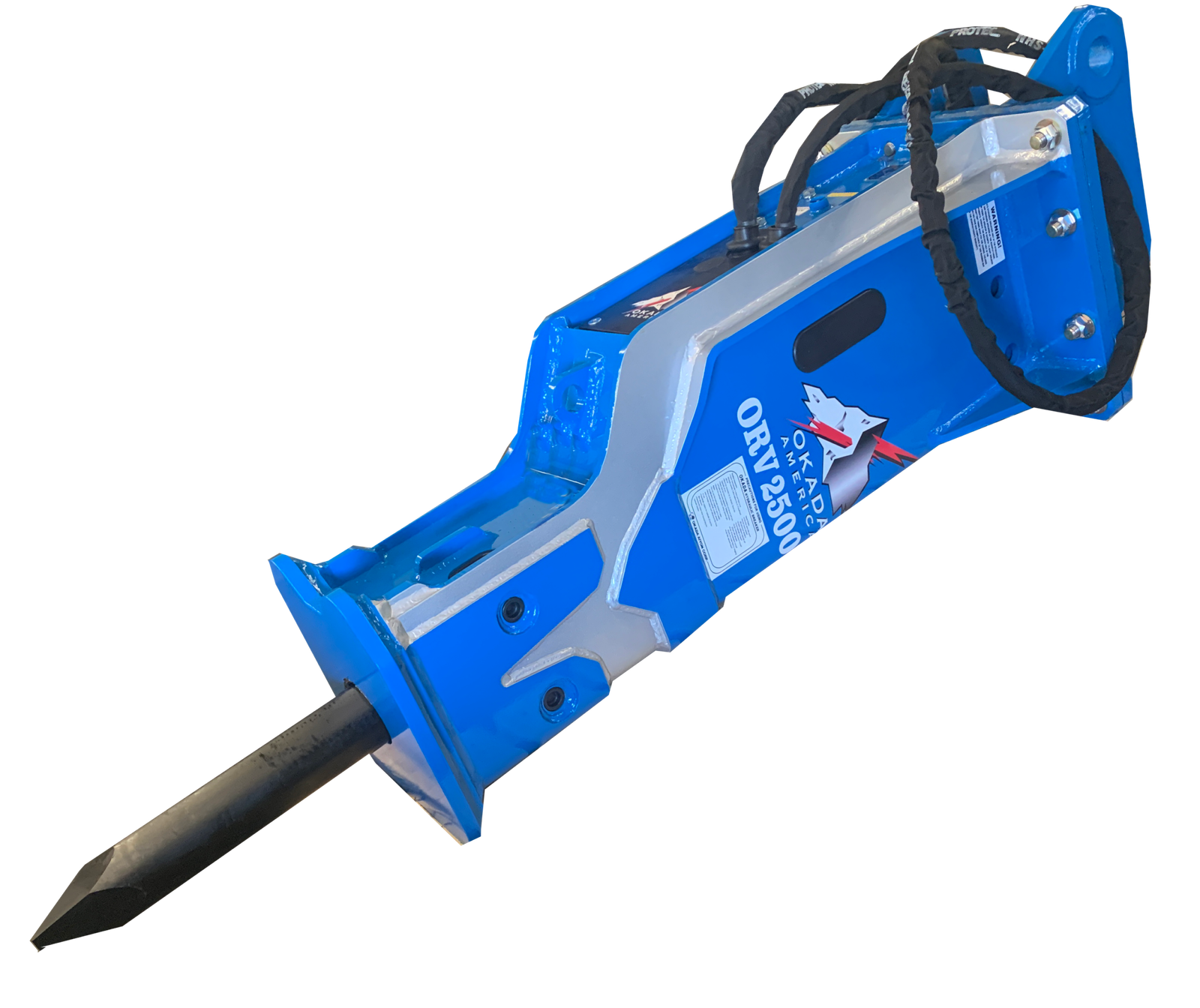

| 2,500 | ORV2500H | 2289 | 4.13 | 350-550 / 600-900 | 25-35 | 1990-2700 | 22,000-34,000 | ||

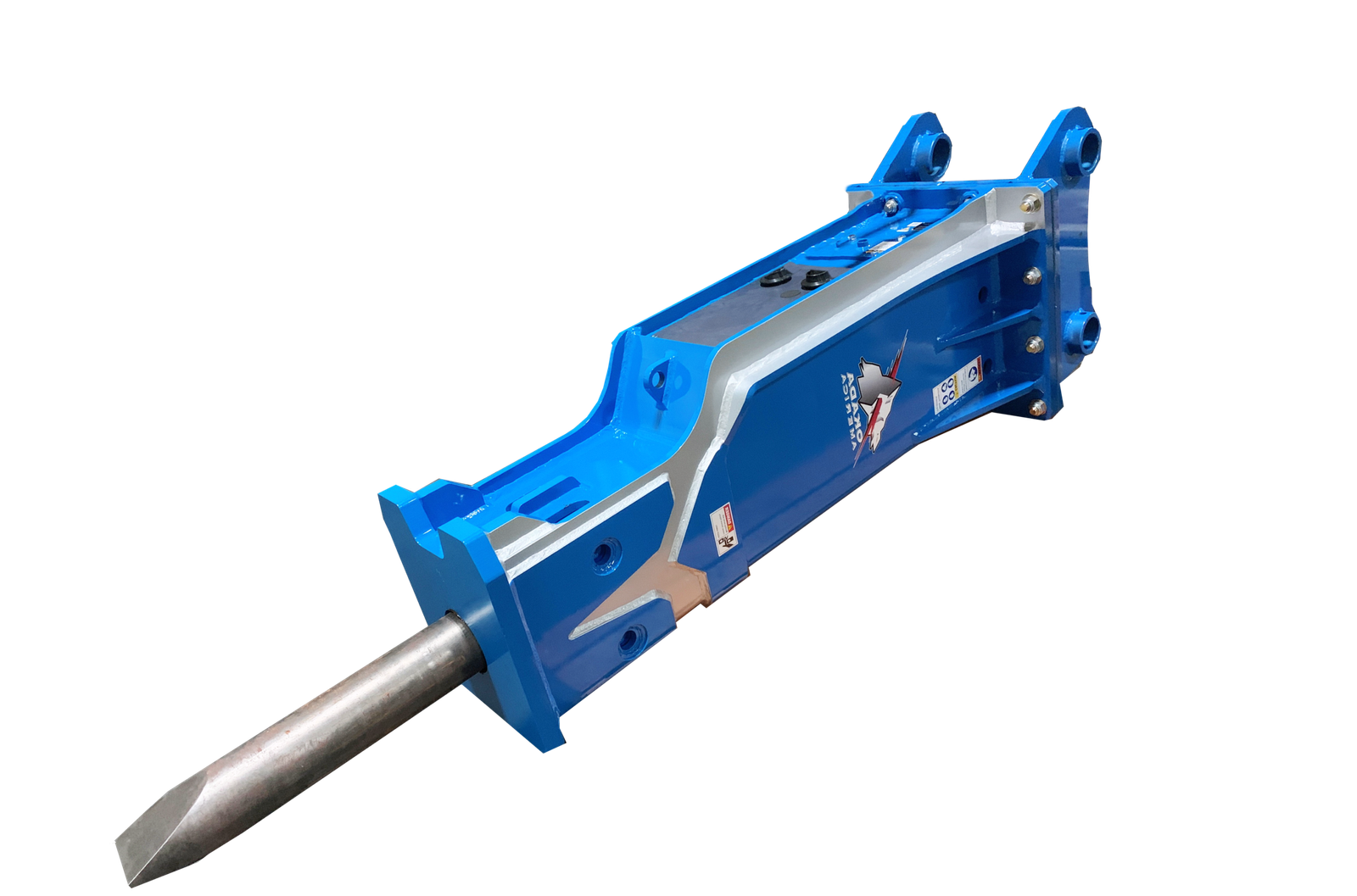

| 3,000 | ORV3000H | 2883 | 4.53 | 320-550 / 400-700 | 32-42 | 1990-2700 | 28,000-40,000 | ||
| 4,000 | ORV4000H | 3646 | 5.31 | 320-480 / 400-600 | 40-53 | 2275-2700 | 38,000-54,000 | ||
| 5,000 | ORV5000H | 4573 | 5.71 | 270-400 / 330-500 | 47-63 | 2275-2700 | 44,000-66,000 | ||

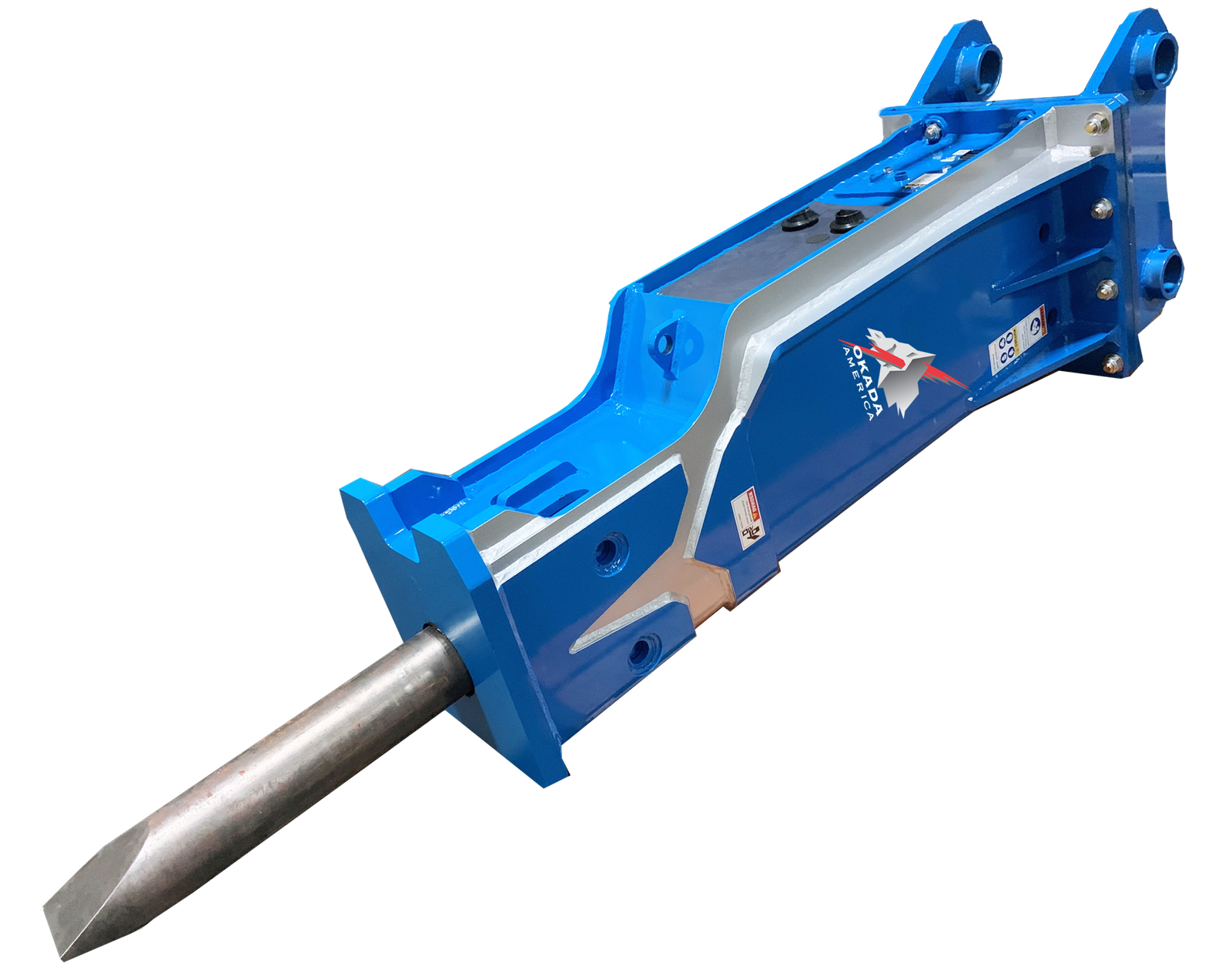

| 7,500 | ORV7500H | 5925 | 6.1 | 230-400 / 270-470 | 63-72 | 2275-2700 | 60,000-92,000 | ||
| 10,000 | ORV10000H | 8636 | 6.65 | 230-330 / 270-500 | 64-85 | 2133-2700 | 76,000-132,000 | ||

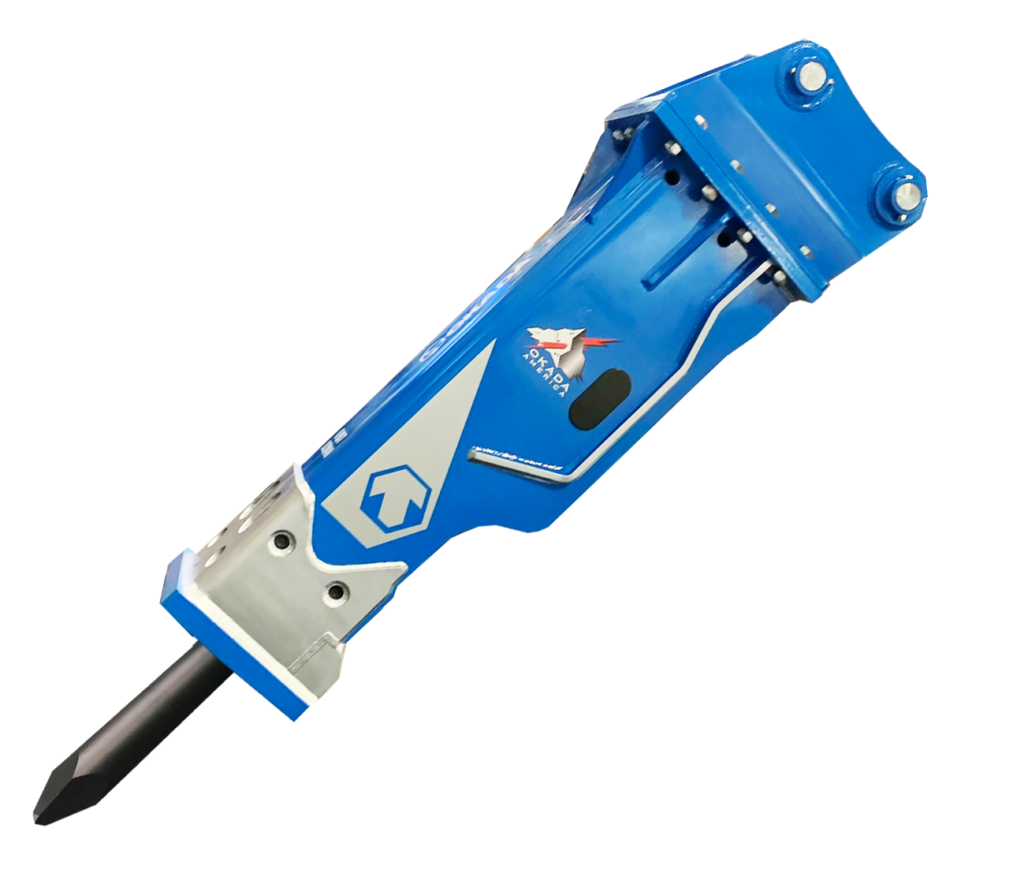

| 12,000 | ORV12000H | 8965 | 7.09 | 270-380 / 380-530 | 69-95 | 2133-2700 | 99,000-176,000 | ||
| * Weight includes Upper Mounting Bracket | |||||||||
| ** Oil flow at no load | |||||||||
